    Delegated WebID? Verification Service

    What?

    A delegated (proxy) service that provides WebID? verification to 3rd party HTTP applications. This service currently uses WebIDs? based on the following URI schemes: http:, ldap:, mailto:, acct:. Other URI schemes will be added over time.

    Why?

    WebID? shouldn't require developers and end-users to build every layer of the technology stack en route to exploitation. This service provides a simple URL pattern for existing HTTP applications seeking to verify WebIDs? via the WebID? verification protocol.

    How?

    This service takes the following inputs via URL parameters:

    • a callback URL (for your actual authentication service endpoint);
    • optional X.509 certificate for the identity being verified by the calling service.

    It returns the following payload via URL parameters:

    • verified WebID?;
    • error: error code if verification fails;
    • ts: timestamp in ISO 8601 format;
    • RSA-SHA1 digest (digital signature) of the URL returned to the calling service.

    Examples of using the Web ID Verification Service Endpoint with requesting Web ID authentication Service Endpoint

    These examples make use of the following endpoints:

    1. http://id.myopenlink.net/ods/webid_demo.html -- an authentication service that delegates WebID? verification to a proxy service
    2. http://id.myopenlink.net/ods/webid_verify.vsp -- actual proxy (delegated) service.

    Prerequisites

    If you want to use your own Virtuoso instance for this exercise, please ensure the following steps are performed:

    1. Start Virtuoso server instance (locally, remote, EC2 AMI, etc. );
    2. Configure an HTTPS Listener for handling HTTPS requests from HTTP user agents (clients);
    3. Install the ODS Framework VAD package;
    4. Install the HTML based Certificate Generator VAD package;
    5. Create an X.509 Certificate with WebID? watermark. Otherwise, simply use the live certificate generation service at: http://id.myopenlink.net/certgen/.

    Example 1

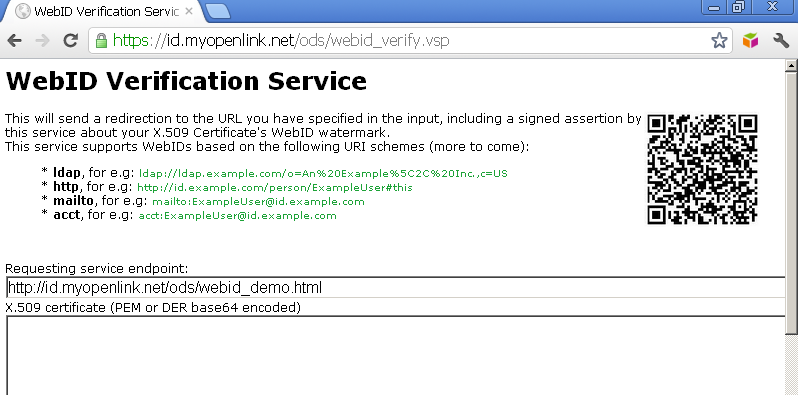

    1. Go to http://id.myopenlink.net/ods/webid_verify.vsp :




    2. Using the form presented, fill in the following:
    3. Click "Verify".
    4. As result you should be redirected to the callback URL and in this case the verification will fail since it doesn't have an X.509 certificate to verify, but a new form is presented due to the effects of the callback URL of the calling service:

    5. Click on the "Check" button and you will be challenged to presented an X.509 certificate, and if the certificate presented bears a WebID? watermark in its Subject Alternative Name (SAN) slot, verification will be successful.



    Example 2

    1. Go to http://id.myopenlink.net/ods/webid_verify.vsp :




    2. Using the form presented, fill in the following:
      • "Requesting service endpoint:": http://id.myopenlink.net/ods/webid_demo.html
      • Paste a base64 DER or PEM encoded representation of the X.509 certificate (that has a WebID? watermark in its SAN slot) into the X.509 certificate input area:



    3. Click "Verify".
    4. As result you should be redirected to the callback URL and in our case the verification is successful - the WebID?, Subject, RSA-SHA1 digest (digital signature) of the callback URL returned, and timestamp in ISO 8601 format will be presented.



    Examples Using cURL

    Prerequisites

    If you want to use your own Virtuoso instance for this exercise, please ensure the following steps are performed:

    1. Start Virtuoso server instance (locally, remote, EC2 AMI, etc. );
    2. Configure an HTTPS Listener for handling HTTPS requests from HTTP user agents (clients);
    3. Install the ODS Framework VAD package;
    4. Install the HTML based Certificate Generator VAD package;
    5. Create an X.509 Certificate with WebID? watermark. Otherwise, simply use the live certificate generation service at: http://id.myopenlink.net/certgen/.
    6. Using the service at: http://id.myopenlink.net/certgen/, export the generated X.509 Certificate and its associated private key to a local PKCS#12 (.p12 of .pfx) file system e.g., the file: "demo.p12" and password: "test"; or simply export to a PEM file.
    7. Alternatively, you can achieve the same using OpenSSL? utilities by executing the following from the command line:

      openssl pkcs12 -in demo.p12 -out demo.pem -nodes

    Example 1: Call the Web ID Verification Service with Certificate and Callback URL Parameters

    In this example the cURL command includes the "-E" parameter which provides the X.509 certificate required by the proxy verification service:


    curl -i -k -E demo.pem:test https://id.myopenlink.net/ods/webid_verify.vsp?callback=http://id.myopenlink.net/ods/webid_demo.html

    HTTP/1.1 302 Found
    Server: Virtuoso/06.03.3131 (Linux) x86_64-generic-linux-glibc25-64  VDB
    Connection: Keep-Alive
    Content-Type: text/html; charset=UTF-8
    Date: Mon, 06 Feb 2012 12:55:55 GMT
    Accept-Ranges: bytes
    Location: http://id.myopenlink.net/ods/webid_demo.html?webid=http%3A%2F%2Fid.myopenlink.net%2Fdataspace%2Fperson%2Fdemo%23this&ts=2012-02-06T07%3A55%3A55.000011-05%3A00&signature=vVhmk%2Fni1WN%2BEahDdnslPOd%2F8RCXdfdK1Syo4hDrIwCBf%2FDpGIMQjI%2FAhyIZW%2BsvV%2BKlWRBeFsDWyVZjRK6bkx2sC%2B4R4Pj1zH8539p7j8H0j8BLqBV9E3yhVvwTUhf4YdqVbXAzGBVwkuaxpfePWCjFhmvwAtkHH25Mo1wwvCE%3D
    Content-Length: 0


    1. In case of successful WebID? verification, the WebID? should be returned, as above:

      webid=http%3A%2F%2Fid.myopenlink.net%2Fdataspace%2Fperson%2Fdemo%23this

    2. Additionally a timestamp in ISO 8601 format should be returned, as above:

      ts=2012-02-06T07%3A55%3A55.000011-05%3A00

    Example 2: Call the Web ID Verification Service without Certificate and Callback URL Parameters

    In this example the cURL command excludes the "-E" parameter. Thus, an X.509 certificate isn't presented to the proxy verification service:


    curl -i -k https://id.myopenlink.net/ods/webid_verify.vsp?callback=http://id.myopenlink.net/ods/webid_demo.html

    HTTP/1.1 302 Found
    Server: Virtuoso/06.03.3131 (Linux) x86_64-generic-linux-glibc25-64  VDB
    Connection: Keep-Alive
    Content-Type: text/html; charset=UTF-8
    Date: Mon, 06 Feb 2012 13:02:28 GMT
    Accept-Ranges: bytes
    Location: http://id.myopenlink.net/ods/webid_demo.html?error=noCert&ts=2012-02-06T08%3A02%3A28-05%3A00&signature=Kp99KHmQwv8Ar7R4L5Iofh3ZO63uPUkZu%2FZiS%2FUz%2BF8pdXMQiS4Mjy5vH3WGkqCGLLrEJv1Rth%2BTfZ7TXohtwNrIveZR6jIymLYyacaTY70VZ6Em%2B6SbJxuE3mzfKlmEOeKGIZQkDQcn67PjI2TQ42830ybXjobDr9t9DoNZTHE%3D
    Content-Length: 0


    1. In case of any error, the service returns "error=.." as it is in our example showing there is no certificate to verify:

      error=noCert

      cURL showcases how the client of a WebID? authentication client and proxy service can exchange messages using REST patterns via HTTP.

    Client Using the Web ID Verification Service Sample Scenarios

    The following examples include Virtuoso PL (VSP), JavaScript?, and PHP variants. Each has as part of their prototype (or call signature) an Address (a URL) that is used by the webid_verify.vsp service.

    Virtuoso Server Pages (VSP) Example

    This example presents a VSP client leveraging service with an X.509 Cert bearing a standard http: scheme URI re. its SAN hosted WebID? watermark.

    • View the code here;
      • Note: The VSP pages can be tested/used both in case they are located in OS file system / or DAV. See more details.

    Trying the service via http:

    1. Access http://<cname>/ods/webid/webid_demo.vsp:



    2. Click the "Check" button.

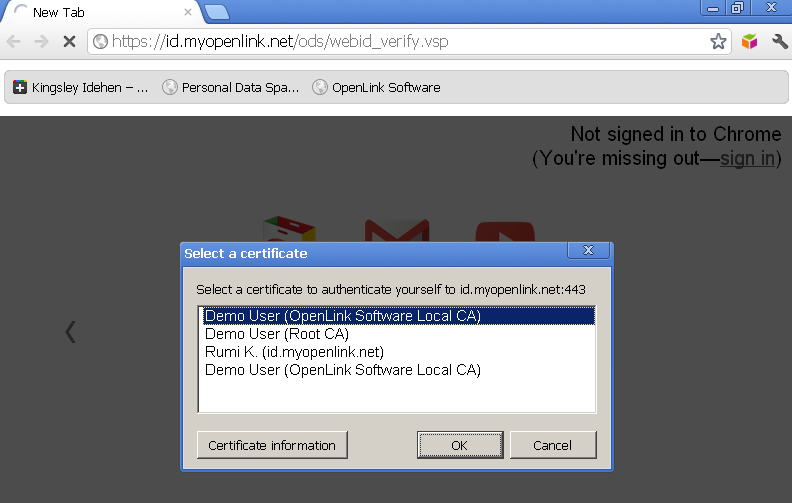

    3. As a result you should be challenged to present an certificate that has WebID? watermark:



    4. Click "Ok".
    5. As a result you should be redirected to a page with URL including the signature and timestamp REST pattern parameters, and in case of successful authentication, you should be presented the WebID? extracted value and timestamp in ISO 8601 format:



    Javascript Example

    This example presents a JavaScript? client leveraging service with an X.509 Cert bearing a standard http: scheme URI re. its SAN hosted WebID? watermark.

    • View the code here;
      • Note: The Javascript pages can be tested/used both in case they are located in OS file system / or DAV. See more details.

    Trying the service via http:

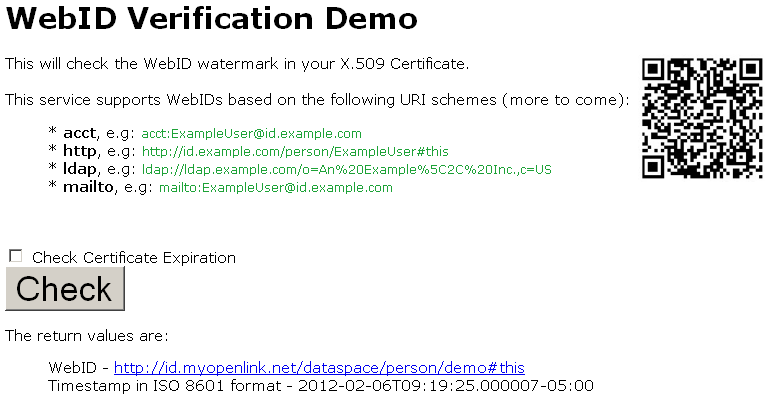

    1. Access http://<cname>/ods/webid/webid_demo.html :
      • Note: Optionally you can hatch "Check Certificate Expiration":



    2. Click the "Check" button.
    3. As a result you should be challenged to present an certificate that has WebID? watermark:



    4. Click "Ok".
    5. As a result you should be redirected to a page with URL including the signature and timestamp REST pattern parameters, and in case of successful authentication, you should be presented the WebID? extracted value, Subject, MD5, SHA1 and timestamp in ISO 8601 format:



    PHP Example

    This example presents a PHP client leveraging service with an X.509 Cert bearing a standard http: scheme URI re. its SAN hosted WebID? watermark.

    • View the code here;
      • Notes: The PHP pages can be tested/used only when they are located in OS file system. See more details.

    Trying the service via http:

    1. Access http://<cname>/ods/webid/webid_demo.php :



    2. Click the "Check" button.
    3. As a result you should be challenged to present an certificate that has WebID? watermark:



    4. Click "Ok".
    5. As a result you should be redirected to a page with URL including the signature and timestamp REST pattern parameters, and in case of successful authentication, you should be presented the WebID? extracted value and timestamp in ISO 8601 format:
